High Sensitivity Auto GPS Antenna with -162 DBm Sensitivity and 5% To 95% Non-condensing Humidity Range

Product Description:

Application:

• Vehicle and ship positioning and navigation
• Time Service
• Drones, law enforcement equipment
• Portable device
• Agricultural positioning and other products

Product features:

• Positioning module and antenna integrated
• Ultra-high sensitivity
• Support BDS/GPS/GLONASS multi-system joint positioning and single system independent positioning.
• With active antenna detection and protection
• Built-in high-gain LNA and SAW for better performance in weak signal situations, even with passive antennas for fast positioning

As an assistant, I've wrapped the content in HTML tags for easy readability and presentation. Here's the rewritten content: The product has a range of applications that include vehicle and ship tracking, navigation, time service, drones, law enforcement equipment, portable devices, and agricultural positioning among others. This makes it a versatile product that meets the needs of different industries. In terms of product features, it has an integrated positioning module and antenna that makes it more efficient and compact. Additionally, it has ultra-high sensitivity that guarantees accuracy while supporting multiple positioning systems like BDS/GPS/GLONASS. The product also has active antenna detection and protection that enhances its durability. Better still, its built-in high-gain LNA and SAW enhances performance even in weak signal situations. This means that even with passive antennas, the product guarantees fast positioning, making it a reliable and efficient product.

Features:

• Product Name: Antenna Module Integrated
• Cold start: Average 29 Seconds
• Sensitivity:
  • Tracking: -162 DBm
  • Cold Start: -148 DBm
  • Hot Start: -148 DBm
• Type: 1.25mm 6pins Connector
• Humidity range: 5% To 95% Non-condensing
• Positioning mode: A-GNSS
• Keywords: GPS Active Antenna, GPS Antenna, GPS Antenna



Technical Parameters:

Product Attribute	Value
Product Name	Car GPS Antenna Module Integrated
Operating Voltage	3V~5V
Receiver Type	GPS/QZSS BDS GLONASS
Model	WT-2828-AK
Number of Channels	56
Accuracy	2.5m
Velocity	0.1 M/s
Timepulse Signal	RMS 30 Ns
Port	UART/TTL/R232
Agreement	NMEA-0183 Or Custom
Power Dissipation	35mA@3.3V
Available Baud Rate	4800bps~921600bps(default 11520000bps)
Positioning Mode	A-GNSS



Applications:

The Antenna Module Integrated product is designed to work in a variety of environments and is suitable for a range of applications. The product's humidity range is 5% to 95% non-condensing, making it ideal for use in areas with high humidity levels. The sensitivity of the product is also impressive, with tracking sensitivity rated at -162 DBm, and Cold Start and Hot Start sensitivity rated at -148 DBm.

Cold start time for the product is an average of 29 seconds, making it a quick and efficient product. The operating temperature range for the product is -40℃ to 85℃, enabling it to function correctly in a wide range of temperatures.

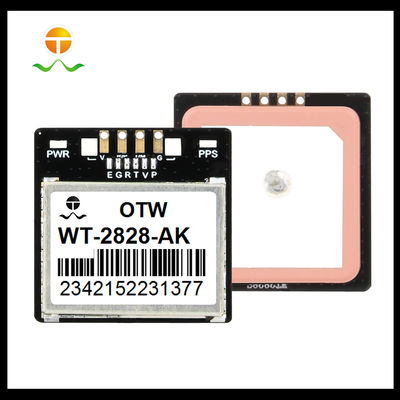

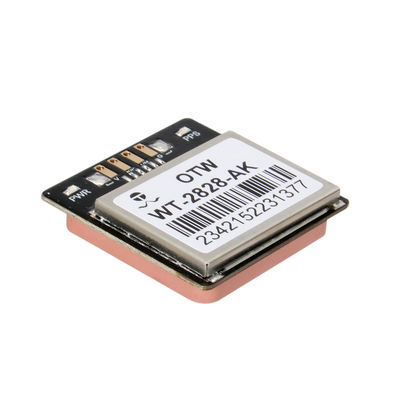

The model number for the Antenna Module Integrated product is WT-2828-AK, and it is manufactured by the OTW brand. It is an excellent product for use in a variety of applications, including vehicle tracking, personal tracking, and marine navigation.

The product's compact size makes it easy to integrate into new or existing systems, and the Antenna Cable Assembly ensures that the product can be positioned correctly for optimal performance. Overall, the Antenna Module Integrated product is an excellent choice for anyone looking for a reliable and efficient GPS Receiver Module.
