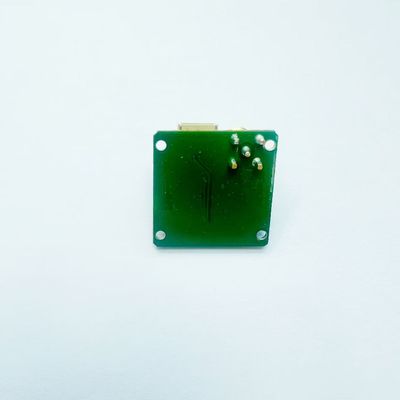

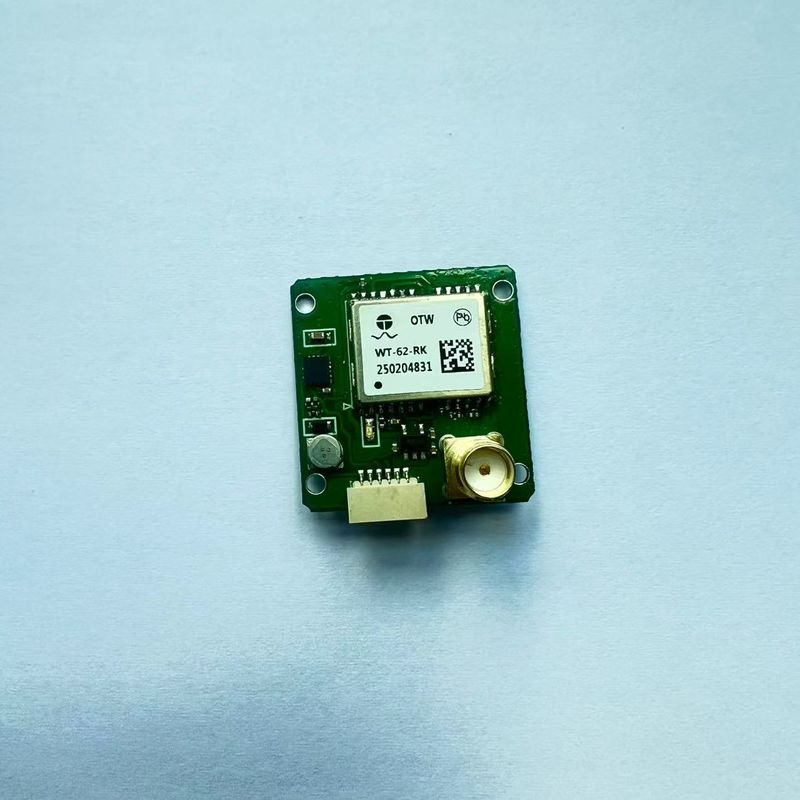

Affordable RTK high-precision module, combined with the geomagnetic 5883p development board

Large Image : Affordable RTK high-precision module, combined with the geomagnetic 5883p development board

Product Details:

Place of Origin:	China
Brand Name:	OTW
Certification:	CE/ISO
Model Number:	WT-62-RK (5883P)

Payment & Shipping Terms:

Minimum Order Quantity:	xx
Price:	xx
Packaging Details:	LCC
Delivery Time:	2-3 days
Payment Terms:	D/P

Contact Now

Affordable RTK high-precision module, combined with the geomagnetic 5883p development board

Description

Module performance
Chip	BG11XX
Receiver type	BDS:B1I/B1C & B2a GPS/QZSS:L1C/A & L5 GLONASS:L1 Galileo:E1 & E5a
Arithmetic	Integrate RTK algorithm
Agreement	NMEA-0183 or custom GALILEO L1 open service (with upgrade) Default:GGA,GSA,GSV,RMC Support:VTG,GLL,TXT ublox binary and NMEA Command
NMEA messages	RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate	4800bps~921600bps(default 115200bps)
Channel	128
Sensitivity	Tracking:-167dBm Capture:-158dBm Cold start-148dBm
Cold start	Average28秒
Hot start	Average1秒
Accuracy	Level 1cm+1ppm CEP50；Elevation 2cm+1ppm CEP50 Timepulse signal: RMS 30 ns
Max Height	18000m
Max Speed	515 m/s
Max Acceleration	≦ 4G
Regeneration	0.25-10 Hz
Positioning mode	A-GNSS,double frequency RTK
Compass	5883P
Connector

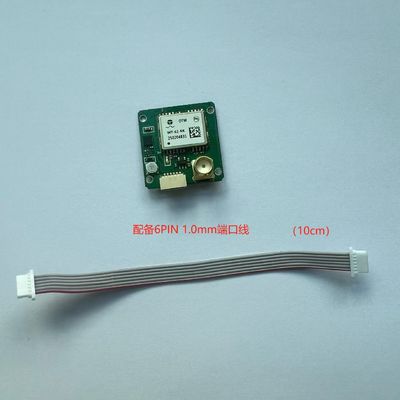

Connector	6PIN 1.0mm JST
Physical property
Type	24PIN LCC package
Power supply
Voltage	1.8V~3.3V
Power Consume	operational mode:103mW@1.8V, standby mode:＜20μW energy-saving mode: search:38mA, trace: 29mA power saving mode: ＜10mA
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
