12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK

12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK
12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK 12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK 12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK 12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK 12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK 12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK

Large Image :  12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK

Product Details:
Place of Origin: China
Model Number: WT-62-AK
Payment & Shipping Terms:
Price: CN¥21.40/pieces 1-499 pieces
Contact Now

12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK

Description
Type: GNSS Module, GPS Module,beidou Module Country Of Origin: Shenzhen Guangdong, China
Brand: OTW Chipset: XX
Application: Positioning, Surveying And Mapping, Etc Operating Mode: GPS+GLONASS+GALILEO+ BDS
Output Mode: UART+TTL Baud Rate: 4800bps-921600bps,Default9600bps
NMEA Sentences: RMC,VTG,GGA,GSA,GSV,GLL Update Frequency: 1Hz-10Hz(default 1Hz)
Voltage: 1.8V To 3.6V Power Consumption: 23 MA , @3.3V
Size: 12.2mm*16mm*2.4mm Supplier Type: Original Manufacturer,agency,odm
Highlight:

12.2mm GNSS module

,

vehicle tracking GNSS Receiver Module

,

WT-62-AK GNSS Receiver Module

12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK
12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK 0 12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK 1 12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK 2
Product Overview

Compact GNSS receiver module designed for precise vehicle tracking applications, featuring multi-constellation support and low power consumption.

Key Specifications
Type: GNSS/GPS/Beidou Module
Chipset: XX
Operating Mode: GPS+GLONASS+GALILEO+BDS
Output Mode: UART+TTL
Baud Rate: 4800bps-921600bps (Default 9600bps)
Update Frequency: 1Hz-10Hz (Default 1Hz)
Voltage: 1.8V to 3.6V
Power Consumption: 23mA @3.3V
Dimensions: 12.2mm × 16mm × 2.4mm
Technical Performance
Parameter Specification
Receiver Type BDS:B1I+B1C, GPS/QZSS/SBAS:L1C/A, GALILEO:E1, GLONASS:L1
Protocol NMEA-0183 compliant or custom protocol
Sensitivity Tracking: -162dBm, Capture: -160dBm, Cold start: -148dBm
Start Time Cold start: 29s (avg), Hot start: 1s (avg)
Position Accuracy Horizontal: <2.5m (SBAS)
Max Operational Limits Height: 18,000m, Speed: 515m/s, Acceleration: ≤4G
Physical Characteristics

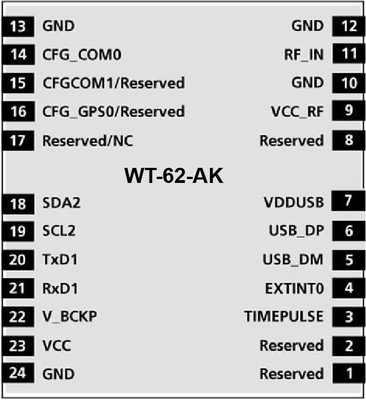

Connection Type: 24 pin stamp holes

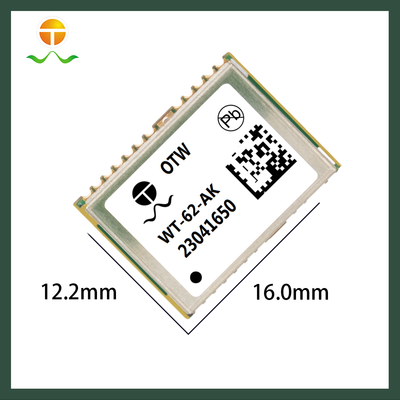

Dimensions: 16.0mm × 12.2mm × 2.4mm (±0.5mm)
Power Consumption: Capture: 23mA, Tracking (power saving mode/1Hz): 5mA
Environmental Specifications
Humidity Range: 5% to 95% non-condensing
Operating Temperature: -40℃ to 85℃
Storage Temperature: -40℃ to 85℃
12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK 3 12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK 4 12.2mm*16mm*2.4mm GNSS Receiver Module for Vehicle Tracking WT-62-AK 5
Applications
  • Vehicle tracking systems
  • Precision positioning
  • Surveying and mapping equipment
  • Navigation devices
  • IoT location-based services
