OTW BeiDou RTK GNSS Module 25.6mm for Surveying and Mapping

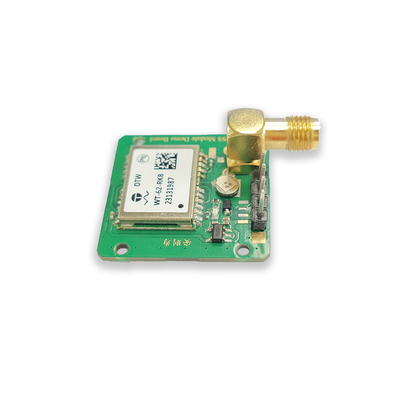

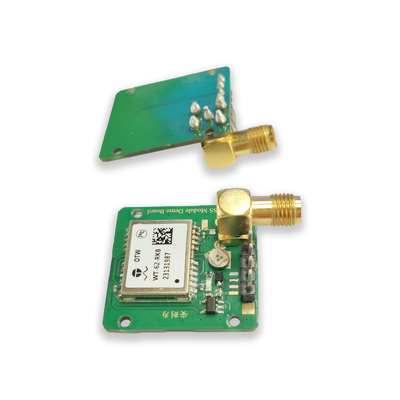

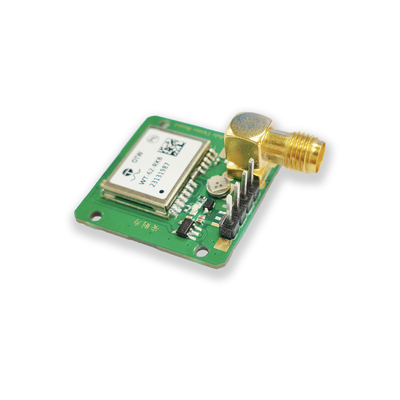

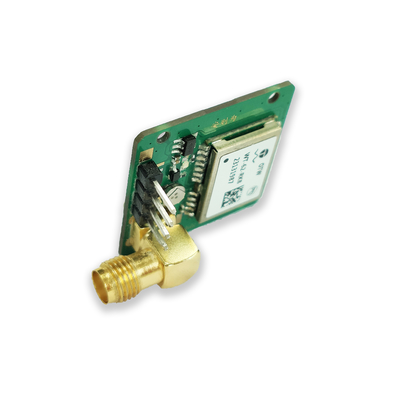

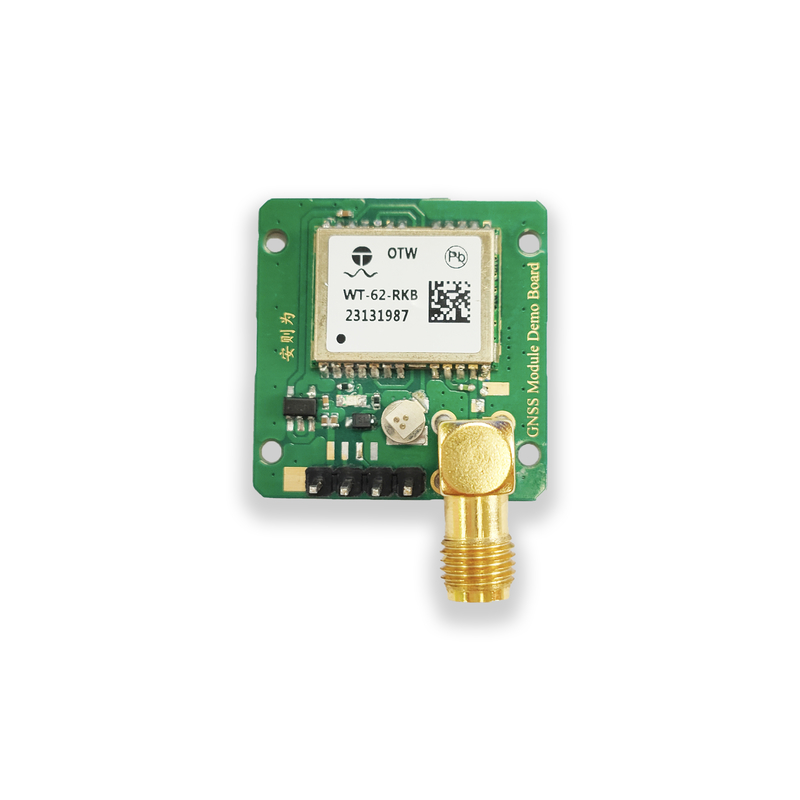

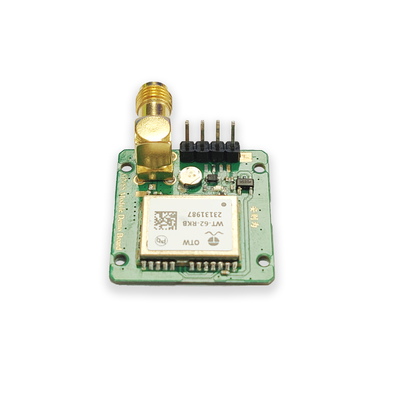

Large Image : OTW BeiDou RTK GNSS Module 25.6mm for Surveying and Mapping

Product Details:

Place of Origin:	China
Model Number:	WT-62-RKB(Development board)

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$8.50-9.50 / piece

Contact Now

OTW BeiDou RTK GNSS Module 25.6mm for Surveying and Mapping

Description

Type:	GNSS Module	Country Of Origin:	CHINA
Brand:	OTW	Chipset:	XX
Application:	Positioning, Surveying And Mapping, Etc	Operating Mode:	BDS
Maximum Height:	18000m	Voltage:	1.8V~3.3V
Update Frequency:	0.25-10 Hz	Operating Temperature:	-40℃ To 85℃
Size:	25.6mm26.5mm11.8mm
Highlight:	BeiDou RTK GNSS module for surveying , 25.6mm GNSS module for mapping , RTK GNSS development board

Application：

● Location of base stations, power and communications l● Area measurement and distance measurement surveying and mapping products l● Vehicle positioning, personnel positioning, vehicle afterloading, etc ● Lawn mowers, farming machines, drones and other fields ● Positioning and measurement in complex environments and high-speed motion scenarios l● Intelligent Internet of Things, intelligent driving, etc

Features：

● RTK algorithm ● Ultra-high precision, can achieve centimeter-level positioning ● Low cost, low power consumption ● Fast positioning

Module performance
Model	WT-62-RKB（Development Board）
Receiver type	BDS B1I/B1C & B2a
Protocol	NMEA-0183 or Customized
Available Baud Rates	4800bps~921600bps(Default 115200bps)
Number of Channels	128
Sensitivity	Tracking: -167dbm Capture: -158dbm Cold start -148dBm
Cold Start	Average 28 seconds
Hot Start	Average 1 seconds
Horizontal Accuracy	Level 1cm+1ppm CEP50; Elevation 2cm+1ppm CEP50
Maximum Height	18,000 meters.
Maximum speed	515 m/s
Maximum acceleration	≦ 4G
Update frequency	0.25-10 Hz
Positioning method	A-GNSS,Double frequency

Port
Port	Pin arrangement/customization
Physical property
Type	24PIN LCC package
Size	25.6mm26.5mm11.8mm (+/- 0.5mm)
Power supply
Voltage	1.8V~3.3V
Power Consume	Running mode: 103mW@1.8V, standby mode: < 20μW
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
