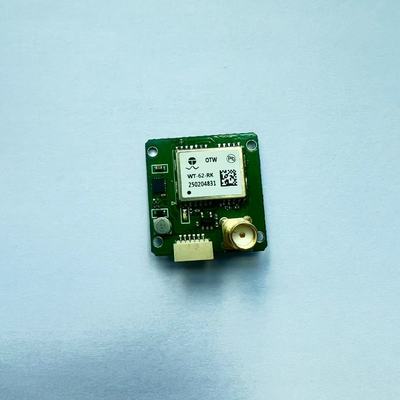

RTK module integrated with geomagnetic integrated board card

RTK module integrated with geomagnetic integrated board card
RTK module integrated with geomagnetic integrated board card RTK module integrated with geomagnetic integrated board card

Large Image :  RTK module integrated with geomagnetic integrated board card

Product Details:
Place of Origin: China
Brand Name: OTW
Certification: CE/ISO
Model Number: WT-62-RK (5883P)
Payment & Shipping Terms:
Minimum Order Quantity: xx
Price: xx
Packaging Details: LCC
Delivery Time: 2-3 days
Payment Terms: D/P
Contact Now

RTK module integrated with geomagnetic integrated board card

Description
Highlight:

RTK module development board

,

geomagnetic integrated board card

,

RTK module with geomagnetic sensor

RTK Module Integrated with Geomagnetic Board Card
Affordable RTK high-precision module with geomagnetic 5883P development board. This cost-effective solution combines high-precision positioning with advanced geomagnetic sensing capabilities, ideal for industrial and manufacturing applications requiring accurate location data.
Module Performance
  • Chip: BG11XX
  • Receiver Type: BDS:B1I/B1C & B2a GPS/QZSS:L1C/A & L5 GLONASS:L1 Galileo:E1 & E5a
  • Arithmetic: Integrated RTK algorithm
  • Protocol: NMEA-0183 or custom GALILEO L1 open service (with upgrade)
  • NMEA Messages: RMC, VTG, GGA, GSA, GSV, GLL
  • Baud Rate: 4800bps~921600bps (default 115200bps)
  • Channels: 128
  • Sensitivity: Tracking: -167dBm, Capture: -158dBm, Cold start: -148dBm
Performance Specifications
Cold Start Average 28 seconds
Hot Start Average 1 second
Accuracy Level: 1cm+1ppm CEP50; Elevation: 2cm+1ppm CEP50
Timepulse Signal RMS 30 ns
Max Height 18000m
Max Speed 515 m/s
Max Acceleration ≤ 4G
Regeneration 0.25-10 Hz
Positioning Mode A-GNSS, double frequency RTK

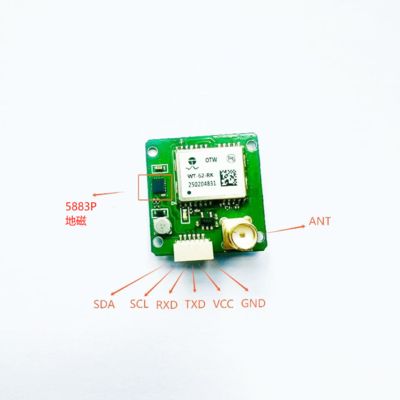

Compass 5883P
Physical Specifications
  • Connector: 6PIN 1.0mm JST
  • Type: 24PIN LCC package
Power Specifications
  • Voltage: 1.8V~3.3V
  • Power Consumption:
    • Operational mode: 103mW@1.8V
    • Standby mode: <20μW
    • Energy-saving mode: search: 38mA, trace: 29mA
    • Power saving mode: <10mA
Operating Environment
  • Humidity Range: 5% to 95% non-condensing
  • Working Temperature: -40℃ to 85℃
  • Storage Temperature: -40℃ to 85℃
