Ultra-small-sized 10.1mm GPS Module with -161dbm Tracking Sensitivity and -148dbm Hot Start Sensitivity

Ultra-small-sized 10.1mm GPS Module with -161dbm Tracking Sensitivity and -148dbm Hot Start Sensitivity
Ultra-small-sized 10.1mm GPS Module with -161dbm Tracking Sensitivity and -148dbm Hot Start Sensitivity Ultra-small-sized 10.1mm GPS Module with -161dbm Tracking Sensitivity and -148dbm Hot Start Sensitivity Ultra-small-sized 10.1mm GPS Module with -161dbm Tracking Sensitivity and -148dbm Hot Start Sensitivity Ultra-small-sized 10.1mm GPS Module with -161dbm Tracking Sensitivity and -148dbm Hot Start Sensitivity

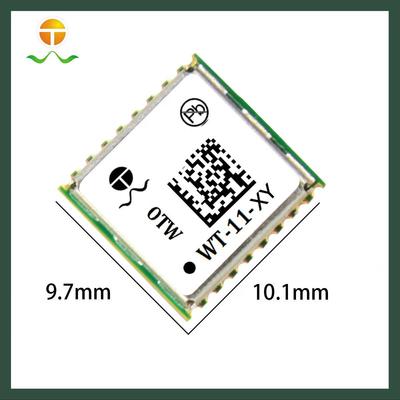

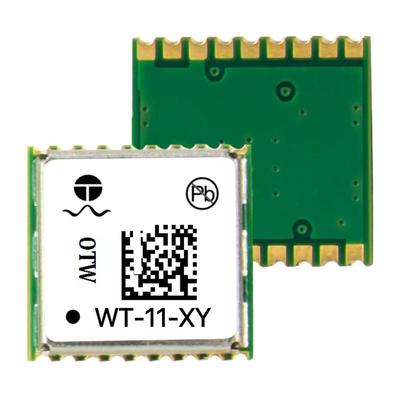

Large Image :  Ultra-small-sized 10.1mm GPS Module with -161dbm Tracking Sensitivity and -148dbm Hot Start Sensitivity

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-11-XY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $2.4
Packaging Details: Carton box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal,Western Union
Supply Ability: 10000 pcs/day
Contact Now

Ultra-small-sized 10.1mm GPS Module with -161dbm Tracking Sensitivity and -148dbm Hot Start Sensitivity

Description
Agreement: NMEA-0183 Compliant Protocol Or Custom Protocol Available Baud Rate: 4800bps~921600bps(default 9600bps)
Start-up Time: Cold Start：Average 29seconds Hot Start：Average 1 Seconds Sensitivity: Tracking: -161dbm Hot Start: -148dbm Cold Start -148dBm
Dimensions: 10.1mm * 9.7mm * 2.4mm (+/- 0.5mm) Positioning Mode: A-GNSS
Update Rate: 0.25Hz-10 Hz Interface: 2 URAT 1 I2C 2 SPI
Highlight:

10.1mm GPS Module

,

-161dbm Tracking Sensitivity GPS Module

,

-148dbm Hot Start Sensitivity GPS Module

Ultra-low Power Consumption GPS Module
The WT-11-UB GPS Module is a compact, high-performance location tracking device designed for integration into various navigation systems and IoT applications.
Ultra-small-sized 10.1mm GPS Module with -161dbm Tracking Sensitivity and -148dbm Hot Start Sensitivity 0 Ultra-small-sized 10.1mm GPS Module with -161dbm Tracking Sensitivity and -148dbm Hot Start Sensitivity 1
Key Features
  • Compact dimensions: 10.1mm × 9.7mm × 2.4mm (±0.5mm)
  • High sensitivity: -161dBm tracking, -148dBm cold/hot start
  • NMEA-0183 compliant protocol with custom protocol options
  • 56-channel receiver for superior signal acquisition
  • Wide operating temperature range: -40°C to 85°C
  • Configurable baud rate from 4800bps to 921600bps
Technical Specifications
Parameter Specification
Model Number WT-11-XY
Update Rate 0.25Hz-10Hz
Positioning Mode A-GNSS
Accuracy Horizontal Position: Average, SBAS < 2.5m
Receiver Type GPS/QZSS L1 C/A, GLONASS L1
Interfaces 2 UART, 1 I2C, 2 SPI
Power Supply 1.8V-3.6V
Applications
The WT-11-UB GPS Module is suitable for diverse applications across multiple industries:
  • Vehicle and marine navigation systems
  • Fleet management and asset tracking
  • Outdoor activity equipment (hiking, camping)
  • Emergency services and personal tracking devices
  • Smart city infrastructure and IoT solutions
  • Mobile devices including smart watches and walkie-talkies
Customization Options
We offer flexible customization services for the WT-11-UB GPS Module:
  • Protocol customization beyond standard NMEA-0183
  • Minimum order quantity: 1 piece
  • Competitive pricing at $3.80 per unit
  • Fast delivery within 5-8 working days
  • Multiple payment options: T/T, AliPay, PayPal
Packaging & Shipping
Each GPS module is securely packaged in protective carton boxes with foam inserts. We ship worldwide via reliable carriers (UPS/FedEx) with full tracking. International shipments include all required customs documentation.
Frequently Asked Questions
Q: What is the brand name of this product?
A: The brand name is OTW.
Q: Where is this product manufactured?
A: Manufactured in China.
Q: What is the supply capacity?
A: Production capacity is 10,000 pieces per day.
