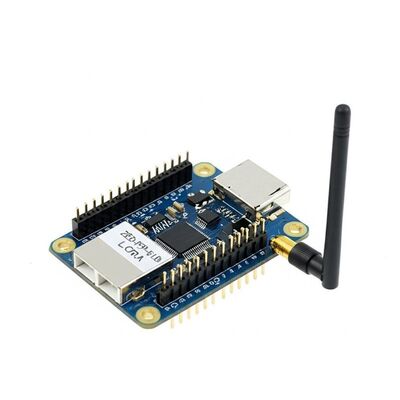

ZED-F9P-01B LORA Integrated Development Board with Dual-band Antenna and LORA Module for High Precision 0.01m + 1ppm CEP and Multi-GNSS Raw Data Output

ZED-F9P-01B LORA Integrated Development Board with Dual-band Antenna and LORA Module for High Precision 0.01m + 1ppm CEP and Multi-GNSS Raw Data Output
ZED-F9P-01B LORA Integrated Development Board with Dual-band Antenna and LORA Module for High Precision 0.01m + 1ppm CEP and Multi-GNSS Raw Data Output
ZED-F9P-01B LORA Integrated Development Board with Dual-band Antenna and LORA Module for High Precision 0.01m + 1ppm CEP and Multi-GNSS Raw Data Output ZED-F9P-01B LORA Integrated Development Board with Dual-band Antenna and LORA Module for High Precision 0.01m + 1ppm CEP and Multi-GNSS Raw Data Output

Large Image :  ZED-F9P-01B LORA Integrated Development Board with Dual-band Antenna and LORA Module for High Precision 0.01m + 1ppm CEP and Multi-GNSS Raw Data Output

Product Details:
Place of Origin: CHINA
Brand Name: OTW
Model Number: ZED-F9P-01B-00-LORA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 120usd per piece
Packaging Details: Paper box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal,Western Union
Supply Ability: 2000pcs/day
Contact Now

ZED-F9P-01B LORA Integrated Development Board with Dual-band Antenna and LORA Module for High Precision 0.01m + 1ppm CEP and Multi-GNSS Raw Data Output

Description
Working Temperature: -40℃ To 85℃ Available Baud Rate: 4800bps~921600bps(default 38400bps)
Accuracy: 0.01 M + 1 Ppm CEP Cold Start: Average 24 Seconds
Sensitivity: Tracking: -167dbm Capture: -160dbm Cold Start -148dBm Hot Start: -157dbm Voltage: 3.6V~6.0V（typical 5V）
Regeneration: 1Hz -20 Hz(default 1Hz） Port: 2 PCS 1.0mm Spacing 4Pins Connector，USB
Lora Range: 2-5km
Highlight:

Dual-band Antenna and LORA Module Development Board

,

High Precision 0.01m + 1ppm CEP GPS Module Development Board

,

Multi-GNSS Raw Measurement Data Output RTK GNSS Development Board

ZED-F9P-01B/02B/04B/05B/15B LORA Integrated L1+L2 Dual-band Antenna And LORA Module
Positioning and measurement in complex environments and high-speed motion scenarios, and intelligent driving of drones
ZED-F9P-01B LORA Integrated Development Board with Dual-band Antenna and LORA Module for High Precision 0.01m + 1ppm CEP and Multi-GNSS Raw Data Output 0
Product Overview
The Development Board is a powerful and versatile product designed for GPS module development, equipped with advanced features to support developers and engineers in GPS technology applications.
Key Features
  • Multi-GNSS Raw Measurement Data Output (RAWX)
  • Configurable Regeneration Rate: 1Hz to 20Hz (default 1Hz)
  • Wide Operating Temperature Range: -40℃ to 85℃
  • High-Speed Data Transfer: 4800bps to 921600bps (default 38400bps)
  • Multiple Connectivity Options: 2x 1.0mm spacing 4-pin connectors and USB port
Technical Specifications
Parameter Specification
Model ZED-F9P-01B-01-LORA
Receiver Type GPS: L1C/A L2C
GLONASS: L1OF L2OF
Galileo: E1-B/C E5b
BeiDou: B1I B2I
QZSS: L1C/A L2C
SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
Algorithm Integrated RTK algorithm
Protocol NMEA-0183, VTG, GLL, TXT, ublox binary and NMEA Command
Channels 184
Sensitivity Tracking: -167dBm
Capture: -160dBm
Cold start: -148dBm
Hot start: -157dBm
Startup Time Cold start: 24s average
Hot start: 2s average
Accuracy 0.01 m + 1 ppm CEP
Dimensions 43.11mm × 30mm × 13mm (±0.5mm)
Voltage 3.6V to 6.0V (typical 5V)
Power Consumption 80 mA @5V
Applications
Brand: OTW
Model: ZED-F9P-01B-01-LORA
Origin: China
  • Automotive navigation systems
  • Aerial and marine navigation
  • Geographic information systems (GIS)
  • Precision agriculture
  • Outdoor recreation and sports tracking
  • Surveying and mapping
  • Timing and synchronization for communication systems
  • Emergency and disaster response
Packaging & Shipping
Each Development Board is carefully packaged in anti-static bags within sturdy cardboard boxes with foam inserts for maximum protection during transit. Orders are typically shipped within 24 hours with tracking information provided.
Frequently Asked Questions
What is the brand name of this product?
The brand name of this product is OTW.
What is the model number?
The model number is ZED-F9P-01B-01-LORA.
Where is this product manufactured?
This product is manufactured in China.
What is the minimum order quantity?
The minimum order quantity is 1 piece.
What is the delivery time?
Delivery time is 5-8 working days.
What payment methods are accepted?
Accepted payment methods include T/T, AliPay, and PayPal.
