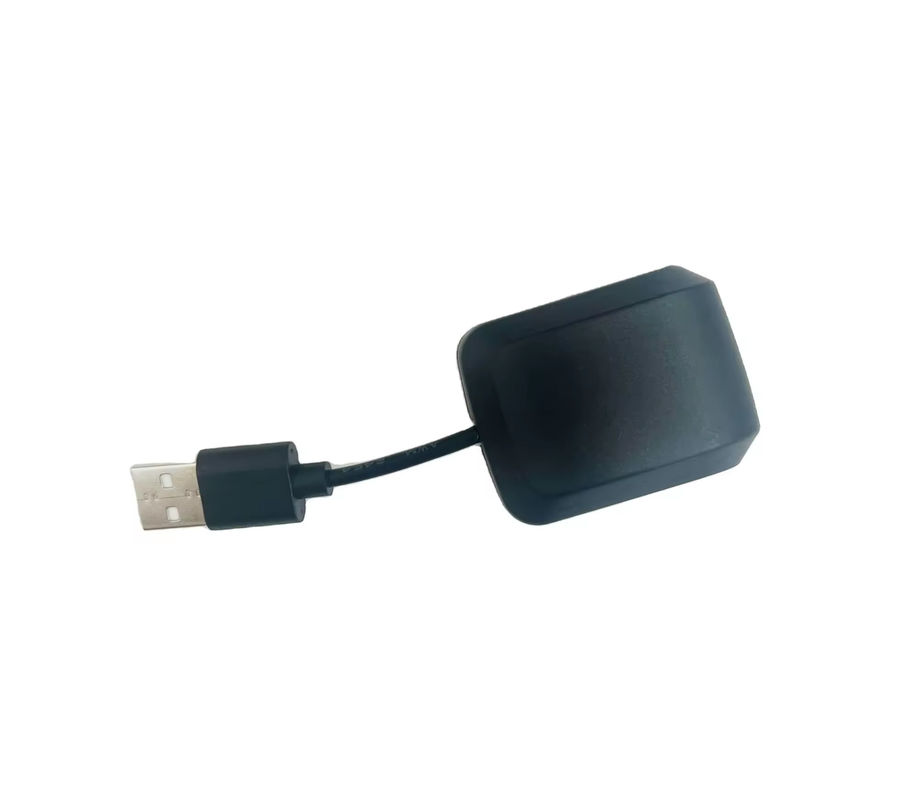

Customizable G-Mouse GPS Antenna Module R232/TTL Sat Nav Mini GPS Receiver

Customizable G-Mouse GPS Antenna Module R232/TTL Sat Nav Mini GPS Receiver
Customizable G-Mouse GPS Antenna Module R232/TTL Sat Nav Mini GPS Receiver
Customizable G-Mouse GPS Antenna Module R232/TTL Sat Nav Mini GPS Receiver Customizable G-Mouse GPS Antenna Module R232/TTL Sat Nav Mini GPS Receiver Customizable G-Mouse GPS Antenna Module R232/TTL Sat Nav Mini GPS Receiver

Large Image :  Customizable G-Mouse GPS Antenna Module R232/TTL Sat Nav Mini GPS Receiver

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-2828-UN-R232-U
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: US $4.1 - 15/
Delivery Time: 7-10working days after receiving the payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: Above US$100 Million
Contact Now

Customizable G-Mouse GPS Antenna Module R232/TTL Sat Nav Mini GPS Receiver

Description
Model: WT-2828-UN-R232-U Chip: UBLOX-M8030
Agreement: NMEA-0183 Compliant Protocol Or Custom Protocol Channel: 72
Cold Start: Average 26 Seconds Hot Start: Average 1 Seconds
Max Height: 18000M Max Speed: 500M/S
Size: 49mm*37.5mm*16mm (+/- 0.5mm) Voltage: 3V~5V
Working Temperature: -40℃ To 85℃
Highlight:

R232 G-Mouse GPS Antenna Module

,

Customizable G-Mouse GPS Antenna Module

Customizable G-Mouse GPS Antenna Module R232/TTL Sat Nav Mini GPS Receiver

Overview

Customizable G-Mouse GPS Antenna Module R232/TTL Sat Nav Mini GPS Receiver 0
Application:
● Car DVR
● Car RearView Mirror
● Car Tracker
● LBS (Location Based Service)
● PND (Portable Navigation Device)
● Computer
● Outdoor Equipment
● Handheld GPS Device. ect.
Customizable G-Mouse GPS Antenna Module R232/TTL Sat Nav Mini GPS Receiver 1
Features:
● External positioning module and antenna integrated
● Elastic design with waterproof function
● Easy to install
● Support BDS/GPS/GLONASS multi-system joint positioning and single system independent positioning.
● Ultra-high sensitivity, high performance, low power consumption
Customizable G-Mouse GPS Antenna Module R232/TTL Sat Nav Mini GPS Receiver 2
Customizable G-Mouse GPS Antenna Module R232/TTL Sat Nav Mini GPS Receiver 3
Pin No.
Pin name
I/O
Description
Remark
1
GND
G
Ground

2
RXD
I
UART Serial Data Input

3
TXD
O
UART Serial Data Output

4
VCC
P
Power Supply
Voltage range 3.0V~5.0V



Tag:

GPS Receiver Antenna,

gmouse gps,

GPS Antenna
