Ultra Low Power GPS Module Development Board With Multi Frequency RTK Algorithm

Ultra Low Power GPS Module Development Board With Multi Frequency RTK Algorithm
Ultra Low Power GPS Module Development Board With Multi Frequency RTK Algorithm
Ultra Low Power GPS Module Development Board With Multi Frequency RTK Algorithm Ultra Low Power GPS Module Development Board With Multi Frequency RTK Algorithm Ultra Low Power GPS Module Development Board With Multi Frequency RTK Algorithm

Large Image :  Ultra Low Power GPS Module Development Board With Multi Frequency RTK Algorithm

Product Details:
Place of Origin: CHINA
Brand Name: OTW
Model Number: ZED-F9P-02B-00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 93.88-87.88usd per piece
Packaging Details: Paper box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal,L/C,D/A,D/P
Supply Ability: 10000 pcs/day
Contact Now

Ultra Low Power GPS Module Development Board With Multi Frequency RTK Algorithm

Description
Power Consume: 80 MA @5V Available Baud Rate: 4800bps~921600bps(default 38400bps)
Receiver Type: GPS: L1C/A L2C GLONASS: L1OF L2OF Galileo: E1-B/C E5b BeiDou: B1I B2I QZSS: L1C/A L2C SBAS: WAAS, EGNOS, MSAS, GAGAN And SouthPAN Agreement: NMEA-0183 Support:VTG,GLL,TXT Ublox Binary And NMEA Command
RAWX: Support Multi-GNSS Raw Measurenmet Data Output Algorithm: Integrated Dual Frequency RTK Algorithm
Voltage: 3.6V~6.0V（typical 5V） Regeneration: 1Hz -20 Hz(default 1Hz）
Highlight:

GPS Module Development board

,

RTK Algorithm Development board

,

Multi Frequency Development board

Ultra Low Power GPS Module Development Board With Multi Frequency RTK Algorithm
Product Description
This high-performance GNSS/GPS receiver evaluation board features centimeter-level positioning accuracy with ultra-low power consumption, making it ideal for precision applications across multiple industries.
Scope of Application
  • Base station, power and communication system location
  • UTC time synchronization and timing domains
  • Agricultural field positioning for farming machines and drones
  • High-speed motion scenarios and complex environments
  • Intelligent IoT systems and autonomous driving applications
Key Features
  • Quad-system dual-frequency support (GPS/BDS/GLONASS/GALILEO)

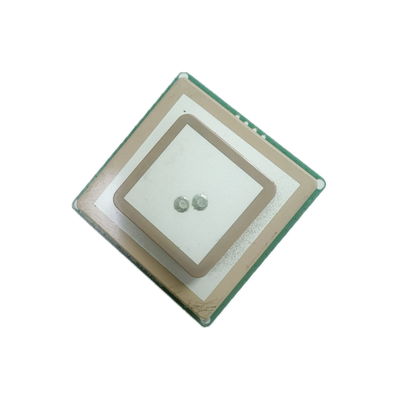

  • Integrated positioning module and antenna design
  • Ultra-high precision: 1cm accuracy with RTK fixed/float solutions
  • Multi-band support including L1, L2, and E5B frequencies
  • Optimized for low power consumption and cost efficiency
Technical Specifications
  • Product Name: Development Board
  • Sensitivity:
    • Tracking: -167dBm
    • Capture: -160dBm
    • Cold Start: -148dBm
    • Hot Start: -157dBm
  • Accuracy: 0.01 M + 1 Ppm CEP
  • Algorithm: Integrated Dual Frequency RTK
Receiver Capabilities
System Supported Signals
GPS L1C/A L2C
GLONASS L1OF L2OF
Galileo E1-B/C E5b
BeiDou B1I B2I
QZSS L1C/A L2C
SBAS WAAS, EGNOS, MSAS, GAGAN, SouthPAN
Performance Parameters
Parameter Value
Cold Start Time Average 24 seconds
Hot Start Time Average 2 seconds
Baud Rate Range 4800bps~921600bps (default 38400bps)
Channels 184
Protocol Support NMEA-0183 (VTG,GLL,TXT), Ublox Binary, NMEA Command
Update Rate 1Hz - 20Hz (default 1Hz)
Operating Temperature -40℃ to 85℃
Power Consumption 80mA @5V
Product Details

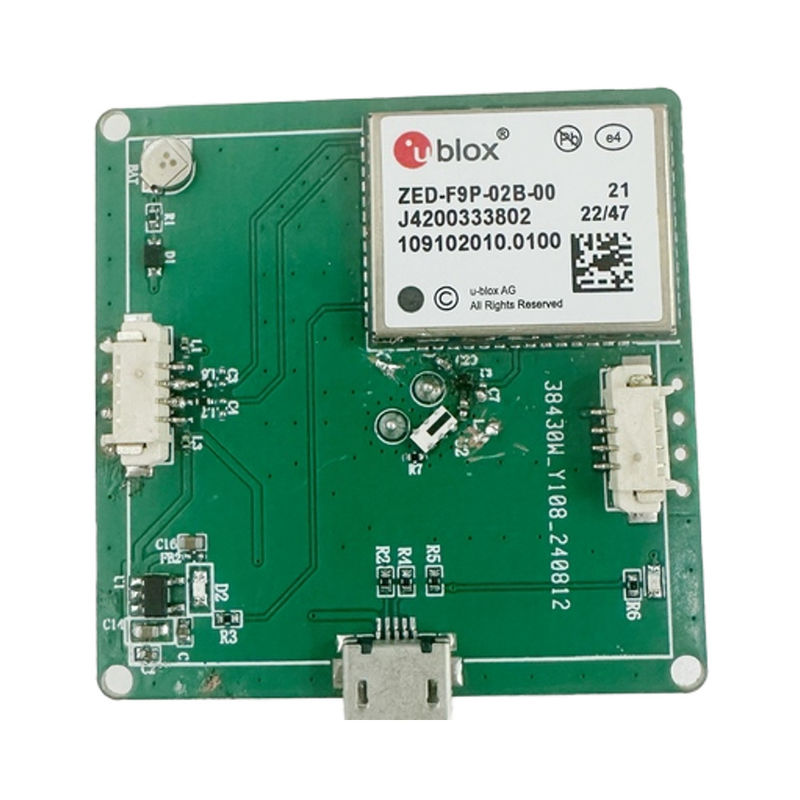

The OTW ZED-F9P-02B-00 GPS Module Development Board is a high-performance evaluation tool for GNSS/GPS applications. With its exceptional start-up times (2s hot start, 24s cold start) and wide operating temperature range (-40℃ to 85℃), it's suitable for demanding environments including vehicle tracking, asset monitoring, and navigation systems.
Package Includes: Development board in paper box packaging
Payment Methods: T/T, AliPay, PayPal
Supply Capacity: Up to 10,000 units per day
Price: $71.29 - $75.29 per unit (MOQ: 1 piece)
