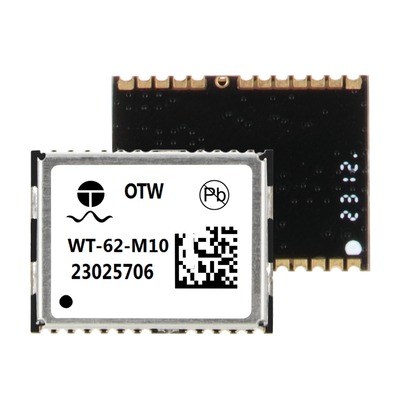

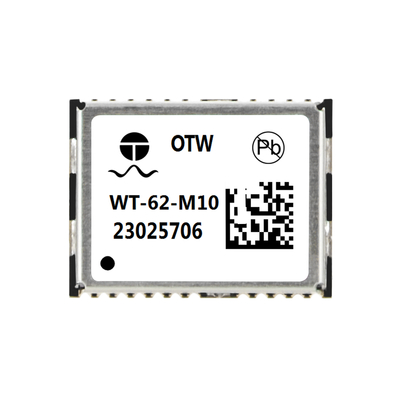

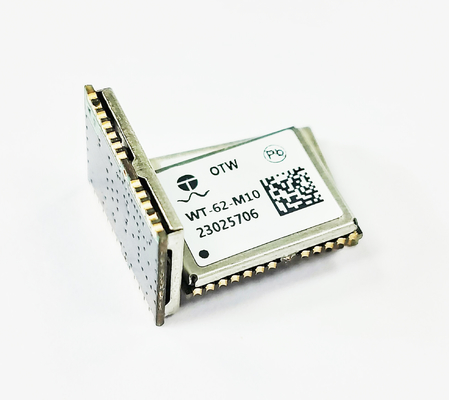

WT-62-M10 GPS Module with M10050 Chipset Supports GPS + GLONASS + GALILEO + BDS

Large Image : WT-62-M10 GPS Module with M10050 Chipset Supports GPS + GLONASS + GALILEO + BDS

Product Details:

Place of Origin:	China
Model Number:	WT-62-M10

Payment & Shipping Terms:

Price:	CN¥39.23/pieces 1-499 pieces

Contact Now

WT-62-M10 GPS Module with M10050 Chipset Supports GPS + GLONASS + GALILEO + BDS

Description

Type:	GNSS Module	Country Of Origin:	Shenzhen Guangdong, China
Brand:	OTW	Chipset:	M10050
Application:	Positioning, Surveying And Mapping, Etc	Operating Mode:	GPS+GLONASS+GALILEO+ BDS
Output Mode:	UART+TTL	Baud Rate:	4800bps-921600bps,Default38400bps
NMEA Sentences:	RMC,VTG,GGA,GSA,GSV,GLL	Update Frequency:	0.25Hz-10Hz(default 1Hz)
Voltage:	1.8V To 3.3V	Power Consumption:	25 MA , @3.3V
Size:	12.2mm16mm2.4mm
Highlight:	GPS Module with M10050 Chipset , Compact WT-62-M10 GPS Module

WT-62-M10 GPS Module with M10050 Chipset Supports GPS + GLONASS + GALILEO + BDS

Product Attributes

Attribute	Value
Type	GNSS Module
Country of Origin	Shenzhen Guangdong, China
Brand	OTW
Chipset	M10050
Application	Positioning, surveying and mapping, etc
Operating mode	GPS+GLONASS+GALILEO+BDS
Output Mode	UART+TTL
Baud rate	4800bps-921600bps, Default 38400bps
NMEA sentences	RMC, VTG, GGA, GSA, GSV, GLL
Update frequency	0.25Hz-10Hz (default 1Hz)
Voltage	1.8V to 3.3V
Power consumption	25 mA @3.3V
Size	12.2mm16mm2.4mm

Technical Specifications

Chip	M10050
Receiver type	GPS/QZSS: L1C/A (1575.42MHz) Galileo: E1-B/C (1575.42MHz) GLONASS: L1OF (1602MHz+k*562.5kHz, k= -7,....,5,6) BeiDou: B1 (1561.098MHz)
Agreement	NMEA-0183 compliant protocol or custom protocol
Available baud rate	4800bps~921600bps (default 38400bps)
Sensitivity	Tracking: -167dbm Capture: -160dbm Cold start: -148dbm
Cold start	Average 29 seconds
Hot start	Average 1 second
Accuracy	Horizontal Position: average, SBAS < 2.0m
Max Height	18000 m
Max Speed	500 m/s
Max Acceleration	≦ 4G
Regeneration frequency	0.25 Hz -10 Hz

Port Specifications

Port

UART/TTL

Physical Properties

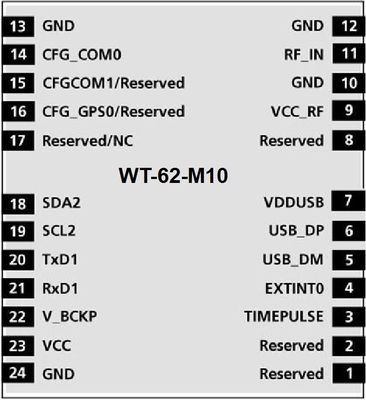

Type	24 pin stamp holes
Size	12.2mm16mm2.4mm (+/- 0.5mm)

Power Supply

Voltage	1.8V~3.3V
Power Consumption	Maximum performance: Capture: 25mA, tracking (power saving mode /1HZ): 5mA

Operating Environment

Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
