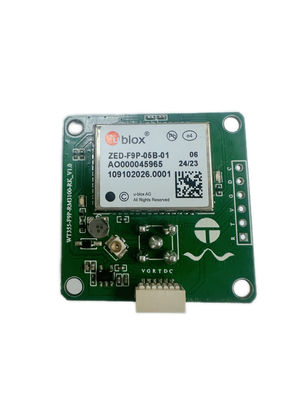

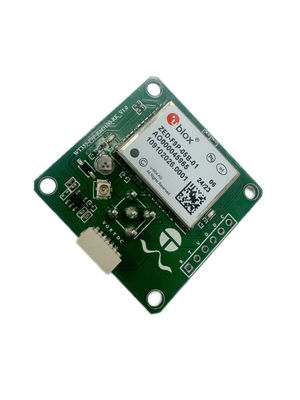

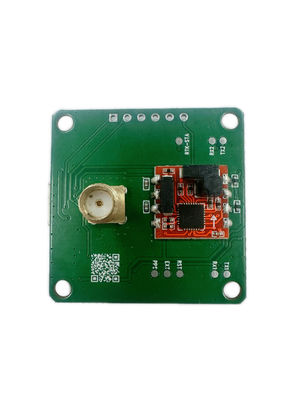

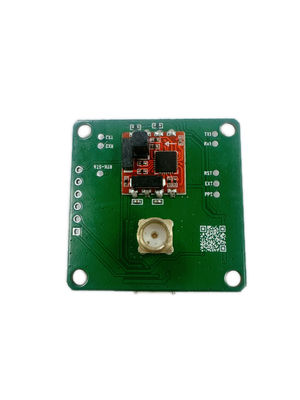

High Precision ZED-F9P Development Board with RM3100 Compass Compact Size 35mm x 35mm x 15mm and 184 Channels for RTK GNSS Applications

High Precision ZED-F9P Development Board with RM3100 Compass Compact Size 35mm x 35mm x 15mm and 184 Channels for RTK GNSS Applications
High Precision ZED-F9P Development Board with RM3100 Compass Compact Size 35mm x 35mm x 15mm and 184 Channels for RTK GNSS Applications High Precision ZED-F9P Development Board with RM3100 Compass Compact Size 35mm x 35mm x 15mm and 184 Channels for RTK GNSS Applications High Precision ZED-F9P Development Board with RM3100 Compass Compact Size 35mm x 35mm x 15mm and 184 Channels for RTK GNSS Applications High Precision ZED-F9P Development Board with RM3100 Compass Compact Size 35mm x 35mm x 15mm and 184 Channels for RTK GNSS Applications High Precision ZED-F9P Development Board with RM3100 Compass Compact Size 35mm x 35mm x 15mm and 184 Channels for RTK GNSS Applications High Precision ZED-F9P Development Board with RM3100 Compass Compact Size 35mm x 35mm x 15mm and 184 Channels for RTK GNSS Applications

Large Image :  High Precision ZED-F9P Development Board with RM3100 Compass Compact Size 35mm x 35mm x 15mm and 184 Channels for RTK GNSS Applications

Product Details:
Place of Origin: CHINA
Brand Name: OTW
Model Number: ZED-F9T-00B-00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 115usd per piece
Packaging Details: Paper box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal
Supply Ability: 10000 pcs/day
Contact Now

High Precision ZED-F9P Development Board with RM3100 Compass Compact Size 35mm x 35mm x 15mm and 184 Channels for RTK GNSS Applications

Description
Available Baud Rate: 4800bps~921600bps(default 38400bps) Agreement: NMEA-0183 Support:VTG,GLL,TXT Ublox Binary And NMEA Command
Regeneration: 1Hz-20Hz(default 1Hz） Size: 35mm * 35mm * 15mm (+/- 0.5mm)
Cold Start: Average 24 Seconds RAWX: Support Multi-GNSS Raw Measurenmet Data Output
Hot Start: Average 2 Seconds Algorithm: Integrated RTK Algorithm
Highlight:

Compact Size Development Board

,

184 Channels GPS Receiver Board

,

Hot Start 2 Seconds RTK GNSS Module

High Precision ZED-F9P with RM3100 Compass - Precise Positioning and Direction Indication
RTK GPS Base and Rover High Precision ZED-F9P F9T RTK GNSS/GPS Receiver Board
The ZED-F9P-05B is a highly advanced development board designed specifically for GPS receivers. It offers exceptional performance and reliability, making it the perfect choice for developers and engineers working on GPS-related projects. With its compact size and cutting-edge features, this development board is the ultimate tool for creating a high-quality GPS receiver.
Key Features
  • Compact and portable size of 35mm × 35mm × 15mm (±0.5mm)
  • Wide operating voltage range of 3.6V~6.0V (typical 5V)
  • 1.0mm Spacing 6Pins Connector
  • High channel capacity of 184
  • Highly sensitive GPS module with tracking sensitivity of -167dBm
  • Quick satellite acquisition with hot start sensitivity of -157dBm
  • Supports multiple GNSS systems including GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Technical Specifications
Parameter Value
Product Type GPS Module Development Board
Protocol NMEA-0183, Ublox Binary, NMEA Command
Working Temperature -40℃ to 85℃
Hot Start Time Average 2 Seconds
Accuracy 0.01 M + 1 Ppm CEP
Update Rate 1Hz - 20Hz (default 1Hz)
Baud Rate 4800bps~921600bps (default 38400bps)
Supported Receiver Types
  • GPS: L1C/A, L2C
  • GLONASS: L1OF, L2OF
  • Galileo: E1-B/C, E5b
  • BeiDou: B1I, B2I
  • QZSS: L1C/A, L2C
  • SBAS: WAAS, EGNOS, MSAS, GAGAN, SouthPAN
Applications
Ideal for various precision positioning applications:
  • Surveying and Mapping
  • Precision Agriculture
  • Drones and UAV Navigation
  • Vehicle Tracking Systems
  • Outdoor Sports and Navigation
  • Robotics and Autonomous Systems
Customization Options
Brand: OTW
Model: ZED-F9P-05B
Origin: China
MOQ: 1 unit
Price: $120.08 per unit
Delivery: 5-8 working days
Capacity: 10,000 units/day
Our team provides customized solutions to meet specific project requirements, along with comprehensive technical documentation for easy integration.
