OTW ublox gps receiver Ultra-small size module

Large Image : OTW ublox gps receiver Ultra-small size module

Product Details:

Place of Origin:	China
Model Number:	WT-11-UN

Contact Now

OTW ublox gps receiver Ultra-small size module

Description

Type:	GNSS Module	Country Of Origin:	CHINA
Brand:	OTW	Chipset:	XX
Application:	Positioning, Surveying And Mapping, Etc	Operating Mode:	GPS+GLONASS+ BDS
Output Mode:	UART+TTL	Baud Rate:	4800bps-921600bps,Default9600bps
NMEA Messages:	RMC,VTG,GGA,GSA,GSV,GLL	Update Frequency:	1Hz-18Hz(default 1Hz)
Voltage:	1.65V To 3.6V	Power Consumption:	21mA @3.0V
Size:	9.7mm10.1mm2.4mm

XX Chipset WT-11-UN Precision GNSS Module For GPS+GLONASS+BDS Satellite Positioning

Key Features

High-performance multi-constellation GNSS module with GPS, GLONASS, and BeiDou support
Precision positioning for navigation, surveying, and mapping applications
Compact 9.7mm * 10.1mm * 2.4mm form factor
Low power consumption (21mA @3.0V)
Wide voltage range (1.65V to 3.6V)
Configurable update frequency (1Hz-18Hz)
Multiple interface options including UART, TTL, I2C, and SPI

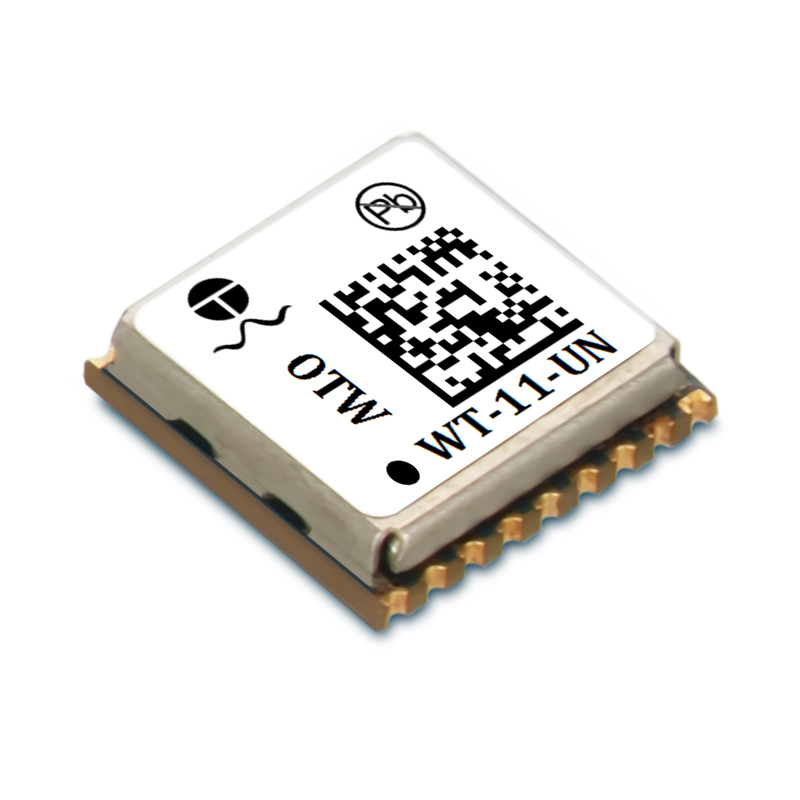

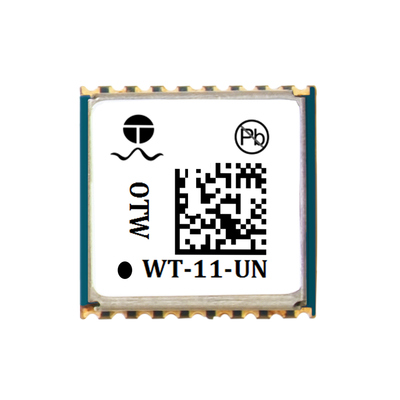

Front view of WT-11-UN GNSS module

Technical Specifications

General Parameters

Attribute	Value
Type	GNSS Module
Brand	OTW
Chipset	XX
Operating Mode	GPS+GLONASS+BDS
Output Mode	UART+TTL+R232
Baud Rate	4800bps-921600bps (Default 9600bps)
Update Frequency	1Hz-18Hz (default 1Hz)
Voltage	1.65V to 3.6V
Power Consumption	21mA @3.0V
Size	9.7mm * 10.1mm * 2.4mm

Receiver Performance

Parameter	Specification
Receiver Type	GPS/QZSS: L1C/A, Galileo: E1-B/C, GLONASS: L1OF, BeiDou: B1
Protocol	NMEA-0183 compliant or custom protocol
Sensitivity	Tracking: -167dBm, Capture: -158dBm, Cold start: -148dBm
Startup Time	Cold start: 26s (average), Hot start: 1s (average)
Positioning Accuracy	Horizontal: <2.0m (with SBAS)

Performance characteristics of WT-11-UN module

Physical Characteristics

Parameter	Value
Package Type	18PIN LCC
Dimensions	9.7mm * 10.1mm * 2.4mm (±0.5mm)
Operating Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 125℃
Humidity Range	5% to 95% non-condensing

Interfaces

2 * UART ports
1 * I2C interface
2 * SPI interfaces

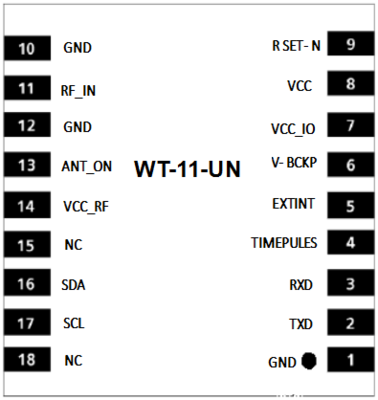

Pinout diagram of WT-11-UN module

Side view of WT-11-UN GNSS module

Typical application diagram
