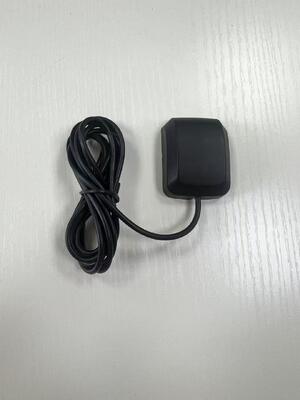

RTK GPS Receiver with Fast Positioning in Sheltered Environments Built-In Ceramic Antenna and Customizable Connector

RTK GPS Receiver with Fast Positioning in Sheltered Environments Built-In Ceramic Antenna and Customizable Connector
RTK GPS Receiver with Fast Positioning in Sheltered Environments Built-In Ceramic Antenna and Customizable Connector RTK GPS Receiver with Fast Positioning in Sheltered Environments Built-In Ceramic Antenna and Customizable Connector RTK GPS Receiver with Fast Positioning in Sheltered Environments Built-In Ceramic Antenna and Customizable Connector

Large Image :  RTK GPS Receiver with Fast Positioning in Sheltered Environments Built-In Ceramic Antenna and Customizable Connector

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-2828-RD
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: xx
Delivery Time: 7-10working days after receiving the payment
Payment Terms: T/T,Western Union
Supply Ability: Above US$100 Million
Contact Now

RTK GPS Receiver with Fast Positioning in Sheltered Environments Built-In Ceramic Antenna and Customizable Connector

Description
Model Number: WT-2828-RD Type: GNSS Receiver
Country Of Origin: CHINA Operating Mode: GPS+GLONASS+GALILEO+ BDS
Baud Rate: 4800bps~921600bps(default115200bps) Voltage: 3.6V To 5.0V

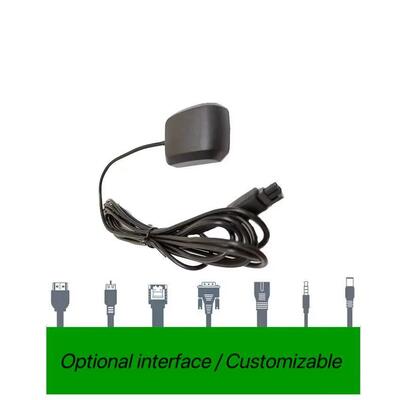

Connector Type: Molex/usb（customizable）
Highlight:

Fast Positioning RTK GPS Receiver

,

Built-In Ceramic Antenna GNSS Receiver

,

Customizable Connector RTK GPS Module

GPS Receiver with RTK+ Inertial Navigation
High-precision positioning solution with centimeter-level accuracy, featuring RTK and inertial navigation fusion technology for reliable performance even in signal-challenged environments.
Applications
  • Intelligent IoT, shared mobility, and crowdsourced mapping
  • GIS collection, handheld terminals, and displacement monitoring
  • Autonomous lawn mowers, agricultural machinery, and drones
  • Vehicle positioning, personnel tracking, and fleet management
Key Features
  • Multi-system support: GPS (L1C/A/L5), BDS (B1I/B2a/B1C), GALILEO (E1/E5a), GLONASS (L1)
  • Dual-frequency RTK with inertial navigation fusion algorithm
  • Centimeter-level positioning accuracy
  • Fast positioning in obstructed environments
  • Integrated antenna design for easy installation
Pin Configuration
Pin No. Pin Name I/O Description Remark
1 GND G Ground
2 RXD I UART Serial Data Input
3 TXD O UART Serial Data Output
4 VCC P Power Supply Voltage range 3.6V~5.0V
Technical Specifications
Model
WT-2828-RD
Receiver Type
GPS/QZSS L1C/A & L5, BDS B1I/B1C & B2a, GAL E1 & E5a, GLONASS L1
Protocol
NMEA-0183 compliant protocol or custom protocol
NMEA Messages
RMC, VTG, GGA, GSA, GSV, GLL
Baud Rate
4800bps~921600bps (default 115200bps)
Channels
128
Sensitivity
Tracking: -167 dBm, Capture: -158 dBm, Cold start: -148 dBm, Hot start: -158 dBm
Start Time
Cold start: Average 28 seconds, Hot start: Average 1 second
Accuracy
Level: 1cm+1ppm CEP50, Elevation: 2cm+1ppm CEP50
Max Height
18000 M
Max Speed
515 m/s
Max Acceleration
≤ 4G
Update Rate
1Hz - 18Hz
Positioning Mode
A-GNSS, Dual frequency RTK+DR Fusion positioning
Communication
TTL/UART/R232
Antenna
Built-in ceramic antenna
Connector Type
Aviation connector

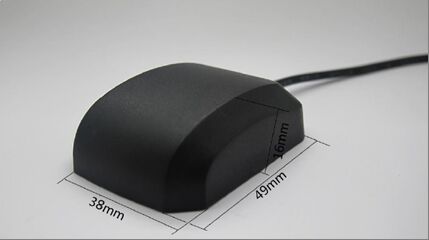

Dimensions
38mm × 49mm × 16mm (±0.5mm)
Wire Length
3m (customizable)
Mounting
3M adhesive or magnet (default 3M adhesive)
Voltage
3.6V~5V
Power Consumption
35mA@3.3V
Operating Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 85℃
Humidity Range
5% to 95% non-condensing
