RTK GNSS Development Board with Integrated LoRa Module for Centimeter-Level Positioning and Dual-Frequency RTK Algorithm

RTK GNSS Development Board with Integrated LoRa Module for Centimeter-Level Positioning and Dual-Frequency RTK Algorithm
RTK GNSS Development Board with Integrated LoRa Module for Centimeter-Level Positioning and Dual-Frequency RTK Algorithm RTK GNSS Development Board with Integrated LoRa Module for Centimeter-Level Positioning and Dual-Frequency RTK Algorithm RTK GNSS Development Board with Integrated LoRa Module for Centimeter-Level Positioning and Dual-Frequency RTK Algorithm RTK GNSS Development Board with Integrated LoRa Module for Centimeter-Level Positioning and Dual-Frequency RTK Algorithm

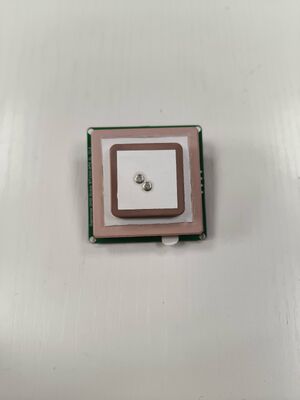

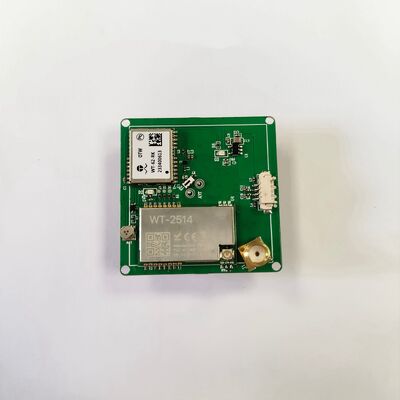

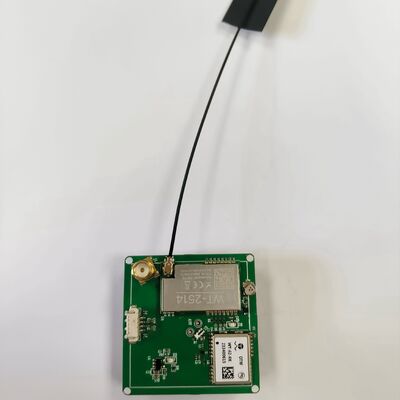

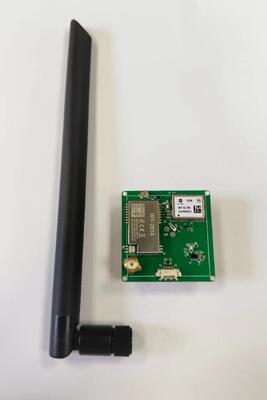

Large Image :  RTK GNSS Development Board with Integrated LoRa Module for Centimeter-Level Positioning and Dual-Frequency RTK Algorithm

Product Details:
Place of Origin: CHINA
Brand Name: OTW
Model Number: WT-RK-LORA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 37.88-41.88usd per piece
Packaging Details: Paper box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal
Supply Ability: 10000 pcs/day
Contact Now

RTK GNSS Development Board with Integrated LoRa Module for Centimeter-Level Positioning and Dual-Frequency RTK Algorithm

Description
Agreement: NMEA-0183 Support:VTG,GLL,TXT Ublox Binary And NMEA Command RAWX: Support Multi-GNSS Raw Measurenmet Data Output
Voltage: 3.6V~6.0V（typical 5V） Power Consume: 80 MA @5V
Cold Start: Average 24 Seconds Maximum Speed: 515 M/s
Regeneration: 1Hz -20 Hz(default 1Hz） Size: 43.11mm * 43.1mm * 8.2mm
Highlight:

Integrated LoRa Module RTK GNSS Development Board

,

Centimeter-Level Positioning GPS Module Development Board

,

Dual-Frequency RTK Algorithm GNSS Receiver Evaluation Board

OTW RTK Module with LoRa Integration
High-precision GPS module development board with integrated LoRa communication, configurable as base station or mobile station for versatile positioning applications.
Application Scope
  • GIS collection and handheld terminals
  • Displacement monitoring systems
  • Base station, power, and communication positioning
  • Positioning in complex environments and high-speed motion scenarios
  • UAV, intelligent IoT, and intelligent driving applications
Product Features
  • Multi-system support: BDS B1I/B2a/B1C, GPS L1C/A/L5, GAL E1/E5a, GLONASS L1 four-system dual frequency
  • Integrated LoRa data transmission module for direct base station communication
  • Built-in dual-frequency RTK algorithm
  • Ultra-high precision centimeter-level positioning
  • Low power consumption with fast positioning capabilities
Technical Specifications
Model Number WT-45-62-RK
Algorithm Integrated Dual Frequency RTK Algorithm
Receiver Type BDS:B1I/B1C & B2a GPS/QZSS:L1C/A & L5 GLONASS:L1 Galileo:E1 & E5a
Operating Voltage 3.6V~6.0V (typical 5V)
RAWX Support Multi-GNSS Raw Measurement Data Output
Update Rate 1Hz - 20Hz (default 1Hz)
Humidity Range 5% to 95% Non-condensing
Storage Temperature -40℃ to 105℃
Working Temperature -40℃ to 85℃
Dimensions 43.11mm × 43.1mm × 8.2mm
Additional Features
  • Product Name: GPS Module Development Board
  • Cold Start: Average 24 seconds
  • Baud Rate: 4800bps~921600bps (default 115200bps)
  • 128 channels support
Primary Applications
GNSS/GPS Receiver Evaluation: Ideal for engineers and developers evaluating GNSS/GPS receiver performance. Serves as a reference design for testing and validation in real-world environments.
Custom Solution Development: Perfect starting point for companies integrating GNSS/GPS functionality into products for fleet management, asset tracking, and precision agriculture.
Ordering Information
Minimum Order Quantity: 1 piece
Price: USD 41 per piece
Packaging: Paper box
Delivery Time: 5-8 working days
Payment Terms: T/T, AliPay, PayPal
Supply Capacity: 10,000 pieces per day
Origin: China
