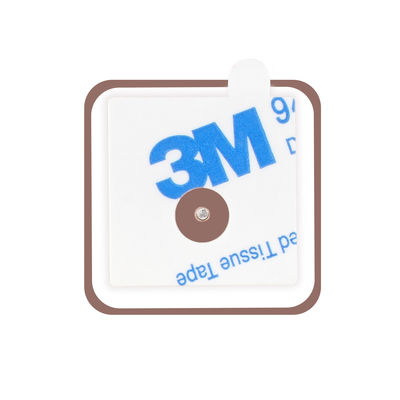

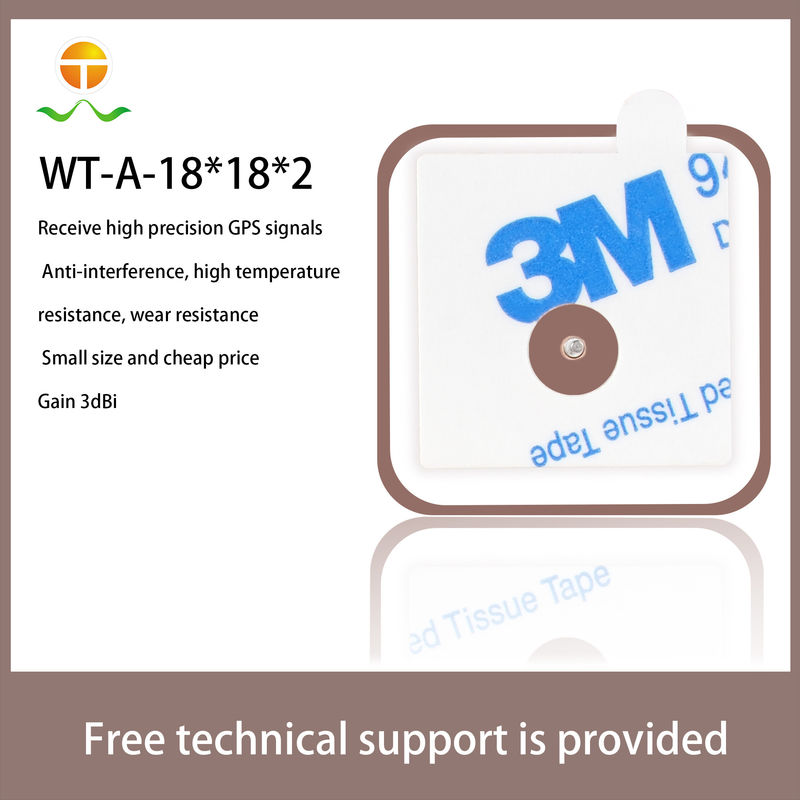

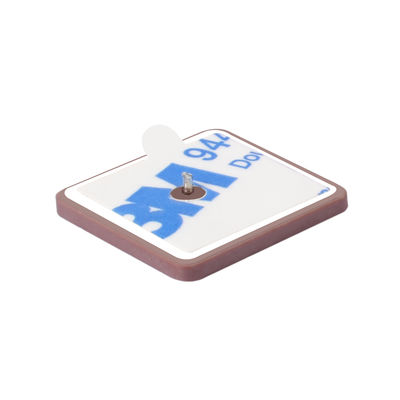

1561-1575.42MHZ Frequency Ceramic Antenna for Electronic Digital

1561-1575.42MHZ Frequency Ceramic Antenna for Electronic Digital
1561-1575.42MHZ Frequency Ceramic Antenna for Electronic Digital
1561-1575.42MHZ Frequency Ceramic Antenna for Electronic Digital 1561-1575.42MHZ Frequency Ceramic Antenna for Electronic Digital 1561-1575.42MHZ Frequency Ceramic Antenna for Electronic Digital 1561-1575.42MHZ Frequency Ceramic Antenna for Electronic Digital

Large Image :  1561-1575.42MHZ Frequency Ceramic Antenna for Electronic Digital

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-A-18*18*2
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: 0.23 - 0.26usd per piece
Delivery Time: 7-10working days after receiving the payment
Payment Terms: T/T,Western Union
Supply Ability: 9999
Contact Now

1561-1575.42MHZ Frequency Ceramic Antenna for Electronic Digital

Description
Model Number: WT-A-18*18*2 Type: GPS+BD Passive Antenna
Country Of Origin: CHINA Atanding Wave Ratio: <1.8
Antenna Gain: 3dBi Impedance: 50Ω
Power Consumption: 50W Connector Type: Direct Weldment
Highlight:

1561-1575.42MHZ Ceramic Antenna

,

Electronic Digital Ceramic Antenna

,

Electronic Digital Antenna

Lightweight and durable ceramic antenna for receiving wireless data signals

Product descriptions from the supplier

Overview

1561-1575.42MHZ Frequency Ceramic Antenna for Electronic Digital 0
Application:
● Electronic digital
● Smoke sensor
● Wireless data transmission
● Smart Home
● GPS Beidou positioning
Signal reception etc.
1561-1575.42MHZ Frequency Ceramic Antenna for Electronic Digital 1
Features:
● Receive high precision GPS signals.
● Anti-interference, high temperature
resistance, wear resistance.
● High quality material.
● Simple and compact, light weight.
● Cheap price.
● Lightweight design.
● Easy installation.
1561-1575.42MHZ Frequency Ceramic Antenna for Electronic Digital 2
1561-1575.42MHZ Frequency Ceramic Antenna for Electronic Digital 3
                                                      Product performance
Model WT-A-18*18*2
Frequency 1561-1575.42MHZ
Output VSWR

＜1.8
Antenna gain 3dBi
Impedance 50Ω
Connector Direct weldment
Type GPS+BD passive antenna
Size 18mm*18mm*2mm(+/-0.5mm)
Voltage 3-5V
Max power 50W
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃

Tag:

Passive GPS Antenna,

GNSS Patch Antenna,

gps wifi antenna
