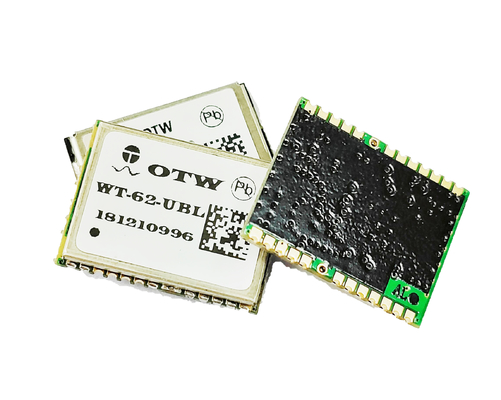

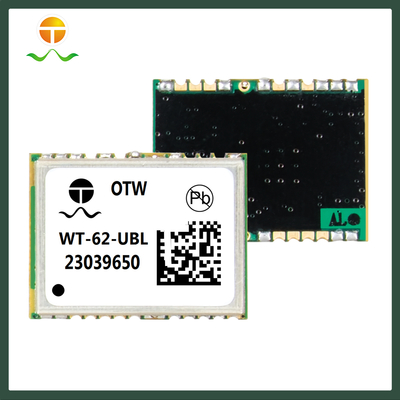

WT-62-UBL GNSS Module for Motorcycle GPS Systems with GPS+GLONASS Support

Large Image : WT-62-UBL GNSS Module for Motorcycle GPS Systems with GPS+GLONASS Support

Product Details:

Place of Origin:	China
Model Number:	WT-62-UBL

Payment & Shipping Terms:

Price:	CN¥29.25/pieces 1-499 pieces

Contact Now

WT-62-UBL GNSS Module for Motorcycle GPS Systems with GPS+GLONASS Support

Description

Type:	GNSS Module	Country Of Origin:	Shenzhen Guangdong, China
Brand:	OTW	Chipset:	XX
Application:	Positioning, Surveying And Mapping, Etc	Operating Mode:	GPS+GLONASS
Output Mode:	UART+TTL	Baud Rate:	4800bps-921600bps,Default 9600bps
NMEA Sentences:	RMC,VTG,GGA,GSA,GSV,GLL	Update Frequency:	1Hz-10Hz(default 1Hz)
Voltage:	1.8V To 3.6V	Power Consumption:	17 MA @3.3V
Size:	12.2mm16mm2.4mm
Highlight:	GNSS module for motorcycles , GPS+GLONASS support GNSS Module , WT-62-UBL GNSS Module

WT-62-UBL GNSS Module for Motorcycle GPS Systems with GPS+GLONASS Support

Product Overview

High-performance GNSS module designed for motorcycle GPS systems, featuring dual GPS+GLONASS support for enhanced positioning accuracy and reliability.

Key Specifications

Attribute	Value
Type	GNSS Module
Brand	OTW
Operating Mode	GPS+GLONASS
Output Mode	UART+TTL
Baud Rate	4800bps-921600bps (Default 9600bps)
Voltage	1.8V to 3.6V
Power Consumption	17 mA @3.3V
Dimensions	12.2mm × 16mm × 2.4mm

Technical Performance

Receiver Type	GPS/QZSS L1 C/A, GLONASS L1
Protocol	NMEA-0183 compliant or custom protocol
Channels	56
Sensitivity	Tracking: -162dBm, Capture: -160dBm, Cold start: -148dBm
Start Time	Cold start: 29s (avg), Hot start: 1s (avg)
Accuracy	Horizontal Position: <2.5m with SBAS
Update Frequency	1Hz-10Hz (default 1Hz)

Physical Characteristics

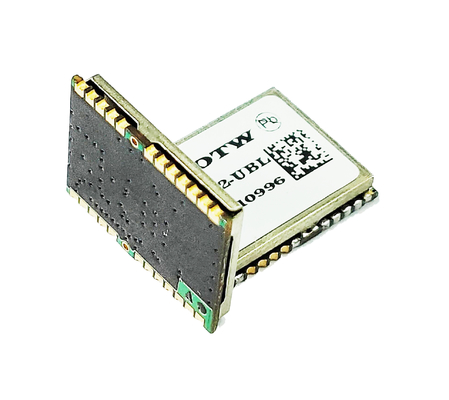

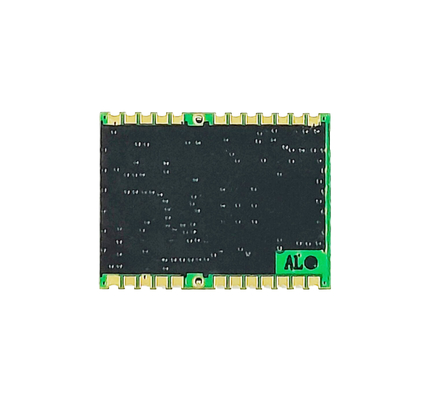

Interface: 24 pin stamp holes

Ports: 2 UART, 1 I2C, 2 SPI

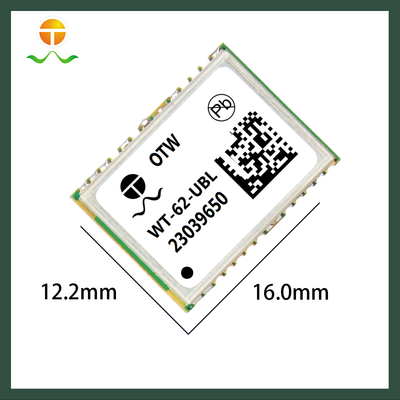

Dimensions: 16.0mm × 12.2mm × 2.4mm (±0.5mm)

Power Specifications

Voltage Range: 1.8V-3.6V

Power Consumption: Operation: 17mA@3V, Power saving: 5mA@3V

Environmental Specifications

Operating Temperature: -40℃ to 85℃

Storage Temperature: -40℃ to 85℃

Humidity Range: 5% to 95% non-condensing
