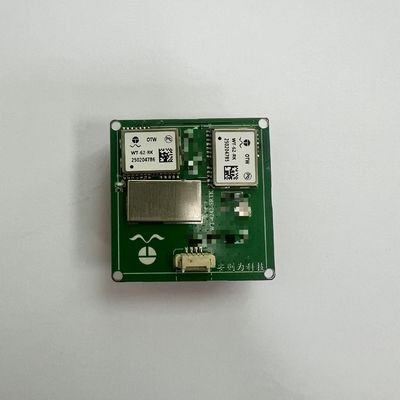

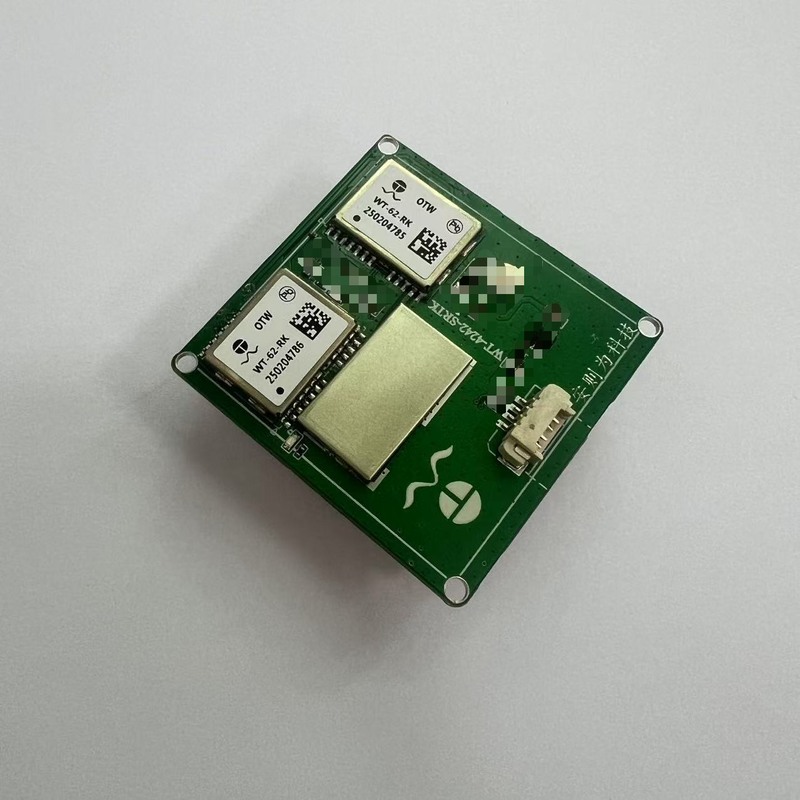

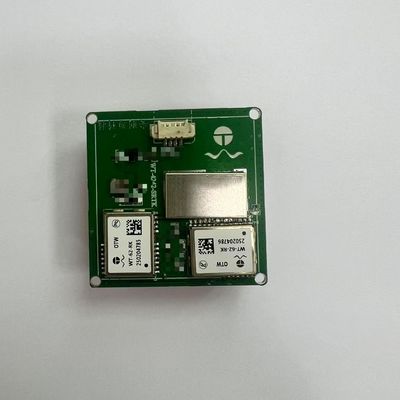

OTW Dual High-Precision Module

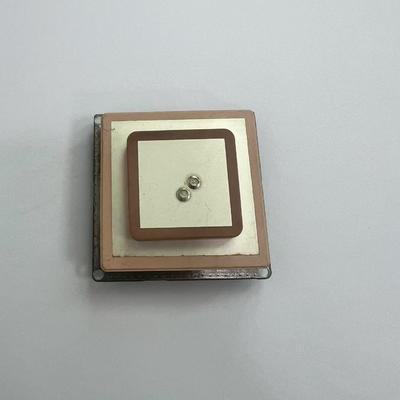

Integrated into a single PCBA with two ceramic antennas inside.
Applications
- Location of base stations, power and communications
- Area measurement and distance measurement surveying and mapping products
- Static test, street lamp, signal receiving station
Features
- Multi-system, can synchronously receive GPS/BDS/GLONASS/GALILEO four system dual frequency
- RTK algorithm

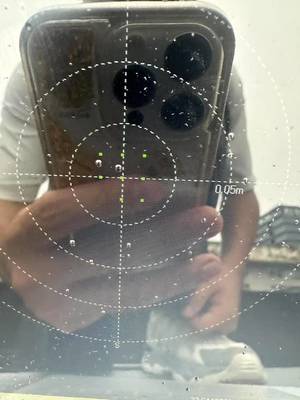

- Ultra-high precision, can achieve centimeter-level positioning
- Low cost, low power consumption
- Fast positioning
Module Performance Specifications
| Model | WT-4242-SRTK |
|---|
| Receiver type | BDS:B1I/B1C & B2a
GPS/QZSS:L1C/A & L5
GLONASS:L1
Galileo:E1,E5a |
|---|
| Arithmetic | Integration RTK |
|---|
| Agreement | NMEA-0183 compliant protocol or custom protocol |
|---|
| Available baud rate | 4800bps~921600bps(default 115200bps) |
|---|
| Channel | 128 |
|---|
| Sensitivity | Tracking: -167dbm
Capture: -160dbm
Cold start -148dbm |
|---|
| Cold start | Average 28seconds |
|---|
| Hot start | Average 1 seconds |
|---|
| Accuracy | Level 1cm+1ppm CEP50
Elevation 2cm+1ppm CEP50 |
|---|
| Max Height | 18000 m |
|---|
| Max Speed | 515 m/s |
|---|
| Max Acceleration | ≦ 4G |
|---|
| Regeneration frequency | 0.25 Hz -10 Hz |
|---|
| Positioning mode | A-GNSS,Double frequency RTK |
|---|
Port
Physical Properties
| Type | 24PIN LCC package |
|---|
| Size | 42mm*42mm*11mm (+/- 0.5mm) |
|---|
Power Supply
| Voltage | 3.3V~5V |
|---|
| Power Consume | Running mode: 103mW@1.8V
Standby mode: < 20μW |
|---|
Operating Environment
| Humidity range | 5% to 95% non-condensing |
|---|
| Working Temperature | -40℃ to 85℃ |
|---|
| Storage Temperature | -40℃ to 85℃ |
|---|
