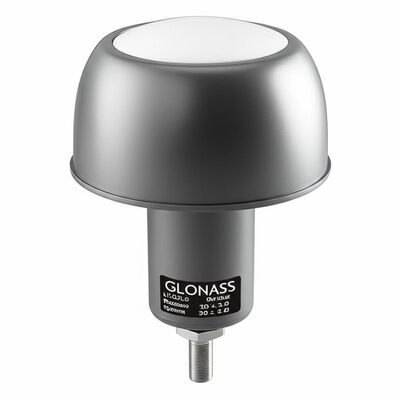

The mushroom-shaped antenna is of high precision. It supports the L1/L2/L5 Beidou system and the GLONASS system. It has IP67-level waterproof performance and a low-noise amplifier gain of 30 ± 3.0 dec

The mushroom-shaped antenna is of high precision. It supports the L1/L2/L5 Beidou system and the GLONASS system. It has IP67-level waterproof performance and a low-noise amplifier gain of 30 ± 3.0 dec
The mushroom-shaped antenna is of high precision. It supports the L1/L2/L5 Beidou system and the GLONASS system. It has IP67-level waterproof performance and a low-noise amplifier gain of 30 ± 3.0 dec

Large Image :  The mushroom-shaped antenna is of high precision. It supports the L1/L2/L5 Beidou system and the GLONASS system. It has IP67-level waterproof performance and a low-noise amplifier gain of 30 ± 3.0 dec

Product Details:
Place of Origin: CHINA
Brand Name: OTW
Certification: CE
Model Number: WT-508
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 59.9
Delivery Time: 5day
Contact Now

The mushroom-shaped antenna is of high precision. It supports the L1/L2/L5 Beidou system and the GLONASS system. It has IP67-level waterproof performance and a low-noise amplifier gain of 30 ± 3.0 dec

Description
Highlight:

mushroom antenna Beidou GLONASS

,

waterproof mushroom antenna IP67

,

low-noise amplifier mushroom antenna

Antena Pertanian RTK Presisi Tinggi, Penerima GNSS GPS L1/L2/L5 BDS GLONASS Sahara EO L-band Antena GNSS RTK GPS Receiver
Antenna Characteristics
Model WT508
Receiver Type Beidou: B1/B2/B3, GPS: L1/L2/L5, Galileo: El/E2/E5/E5a/E5b/E6, GLONASS: L1/L2/L3
Peak Gain ≥5 dBi
Polarization RHCP
Axial Ratio @ Zenith ≤1.5dB
Azimuth Coverage 360°
Impedance 50 ohm
LNA Specifications
Port UART/TTL
Frequency Range 1164MHz~1268MHz, 1525MHz~1615MHz
LNA Gain 30±3.0dB (Typ. @25°C)
Noise Figure ≤2 dB@25°C, Typ.
Output VSWR ≤1.8:1 typ. 2.0:1 max
Operating Voltage 3.0~5.0V DC
Operation Current ≤45mA
Mechanical & Environmental Specifications
Dimension See the figure
Connector TNC
Radome ABS+PC
Weight ≤16g
Attachment Method Through the connector
Operating Temperature -40℃ ~ +85℃
Storage Temperature -55℃ ~ +85℃
Humidity 95% No-condensing
Waterproof Rating IP67
The mushroom-shaped antenna is of high precision. It supports the L1/L2/L5 Beidou system and the GLONASS system. It has IP67-level waterproof performance and a low-noise amplifier gain of 30 ± 3.0 dec 0
