M10 Chip GNSS GPS Module with 0.25 Hz -10 Hz Regeneration Frequency and NMEA-0183 Compliant Protocol

M10 Chip GNSS GPS Module with 0.25 Hz -10 Hz Regeneration Frequency and NMEA-0183 Compliant Protocol
M10 Chip GNSS GPS Module with 0.25 Hz -10 Hz Regeneration Frequency and NMEA-0183 Compliant Protocol M10 Chip GNSS GPS Module with 0.25 Hz -10 Hz Regeneration Frequency and NMEA-0183 Compliant Protocol M10 Chip GNSS GPS Module with 0.25 Hz -10 Hz Regeneration Frequency and NMEA-0183 Compliant Protocol

Large Image :  M10 Chip GNSS GPS Module with 0.25 Hz -10 Hz Regeneration Frequency and NMEA-0183 Compliant Protocol

Product Details:
Place of Origin: CHINA
Brand Name: OTW
Model Number: WT-2828-M10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US 15.6
Packaging Details: Paper box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal,Western Union
Supply Ability: 10000 pcs/day
Contact Now

M10 Chip GNSS GPS Module with 0.25 Hz -10 Hz Regeneration Frequency and NMEA-0183 Compliant Protocol

Description
NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL Type: Pin Header
Regeneration Frequency: 0.25 Hz -10 Hz Model: WT-2828-M10（5883P）
Agreement: NMEA-0183 Compliant Protocol Or Custom Protocol Receiver Type: GPS/QZSS :L1C/A (1575.42MHz) Galileo:E1-B/C (1575.42MHz) GLONASS:L1OF (1602MHz+k*562.5kHz,k= -7,....,5,6) BeiDou:B1|(1561.098MHz)
Port: UART/TTL/R232 Available Baud Rate: 4800bps~921600bps(default 38400bps)
Highlight:

M10 Chip GNSS GPS Module

,

0.25 Hz -10 Hz GNSS GPS Module

,

NMEA-0183 Compliant GPS Receiver Antenna

WT-2828-M10 GNSS GPS Module Receiver

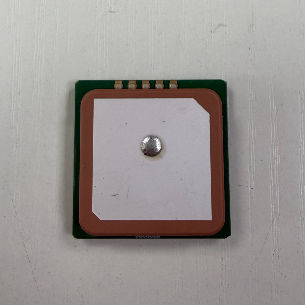

High-Performance GPS Module with Integrated Ceramic Antenna

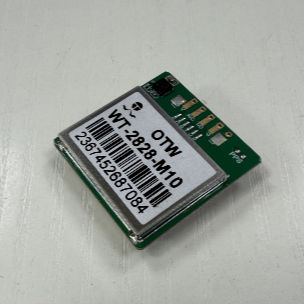

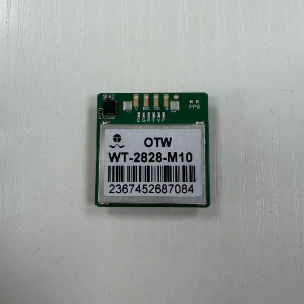

The WT-2828-M10 is a compact, high-performance GPS module with integrated ceramic antenna, designed for precision positioning in various applications. This module combines advanced GPS technology with robust construction for reliable performance in demanding environments.
Key Features
  • Integrated GPS module with ceramic antenna
  • UART/TTL/R232 communication port
  • Adjustable baud rate from 4800bps to 921600bps (default 38400bps)
  • Wide operating voltage range: 3V to 5V
  • Operating temperature range: -40°C to 85°C
  • Compact dimensions: 28.3mm × 28.3mm × 7.5mm
  • High sensitivity: Tracking -167dBm, Capture -160dBm
  • Fast startup: Cold start 29s (average), Hot start 1s (average)
M10 Chip GNSS GPS Module with 0.25 Hz -10 Hz Regeneration Frequency and NMEA-0183 Compliant Protocol 0
Technical Specifications
Chip M10050
Compass 5883P
Receiver Type GPS/QZSS: L1C/A (1575.42MHz)
Galileo: E1-B/C (1575.42MHz)
GLONASS: L1OF (1602MHz)
BeiDou: B1 (1561.098MHz)
Protocol NMEA-0183 compliant or custom protocol
Positioning Accuracy Horizontal: average, SBAS < 2.0m
Max Height 18000m
Max Speed 515 m/s
Power Consumption 35mA @ 3.3V
Applications
  • Vehicle tracking and navigation systems
  • Fleet management and logistics tracking
  • Personal and asset tracking
  • Marine navigation and positioning
  • Agricultural and construction machinery
  • Outdoor sports and fitness tracking
  • Surveying and mapping
Customization & Ordering
Brand: OTW
Model: WT-2828-M10(5883P)
Origin: China
MOQ: 1 piece
Price: $11.88 per piece
Delivery: 5-8 working days
Payment: T/T, AliPay, PayPal
Capacity: 10,000 pcs/day
Packaging & Shipping
Each module is carefully packaged in protective foam within a sturdy cardboard box. We ship worldwide via DHL, FedEx, and UPS, with tracking provided for all orders. Bulk orders can be arranged via sea or air freight.
Frequently Asked Questions
Q: What is the brand name of this product?
A: The brand name is OTW.
Q: What is the model number?
A: The model number is WT-2828-M10.
Q: Where is this product made?
A: This product is made in China.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 piece.
Q: What is the price per unit?
A: The price is $11.88 per piece.
